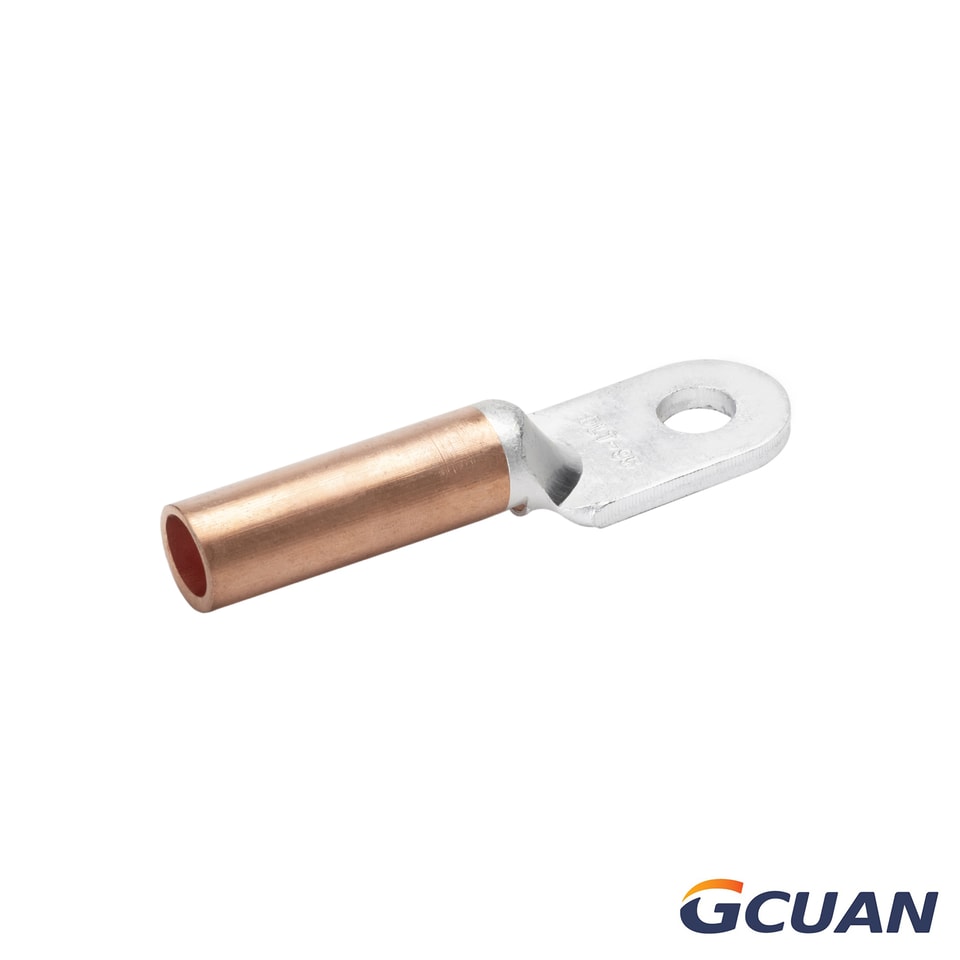

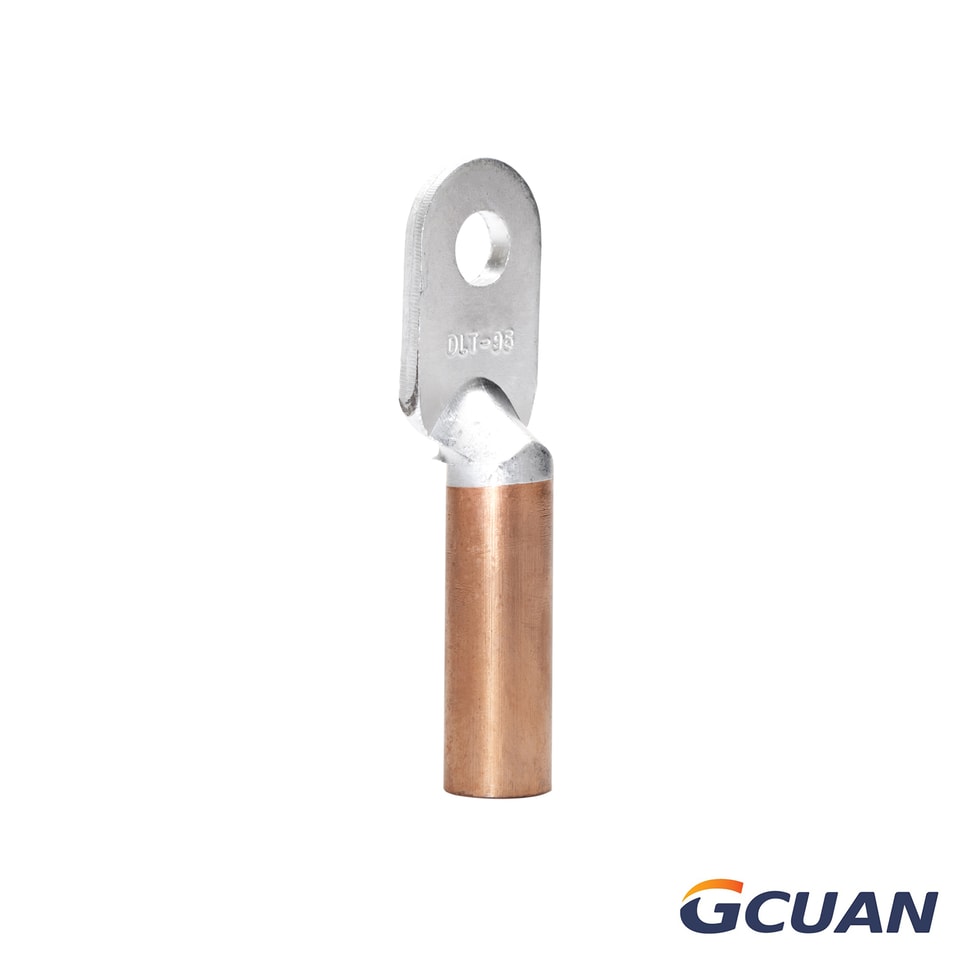

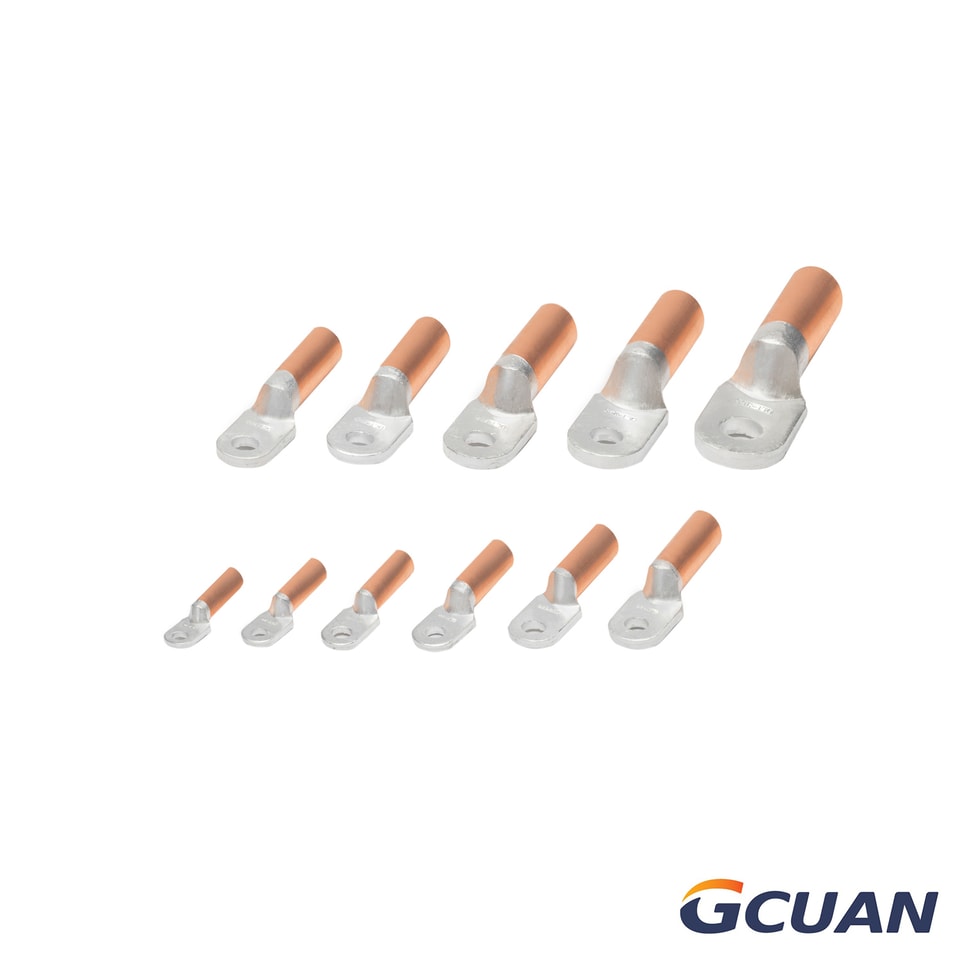

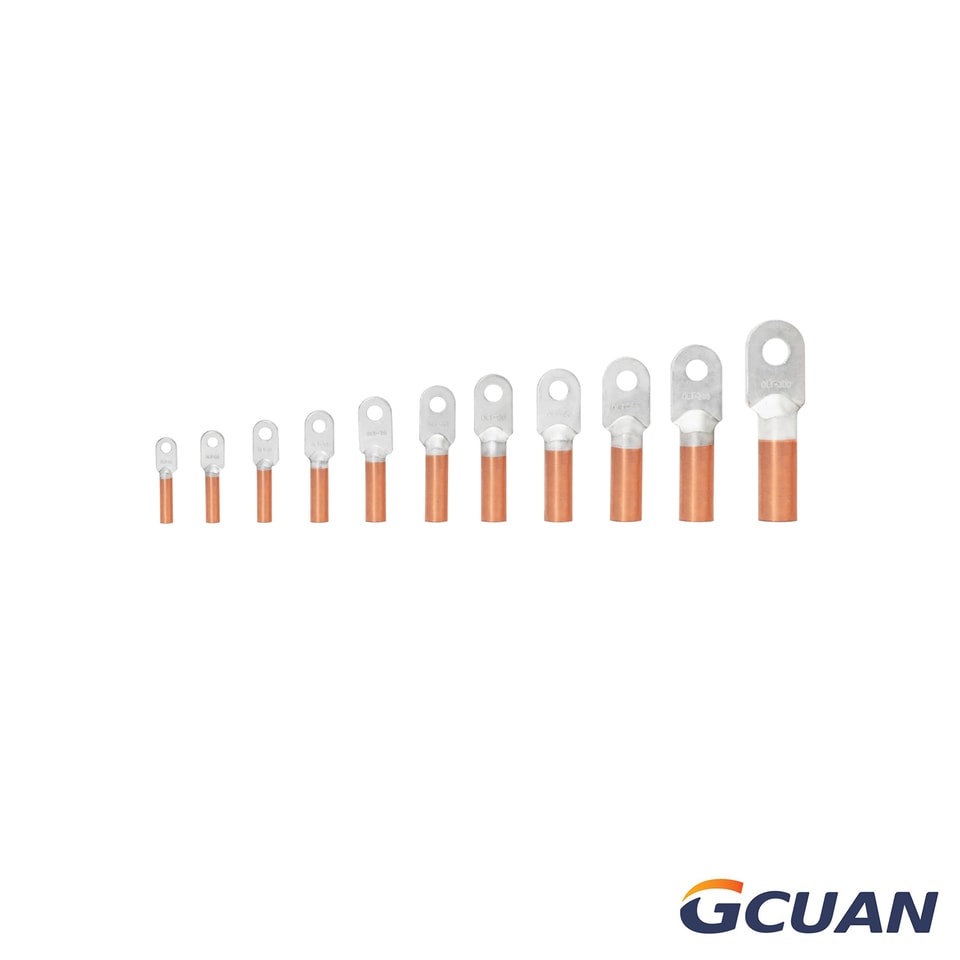

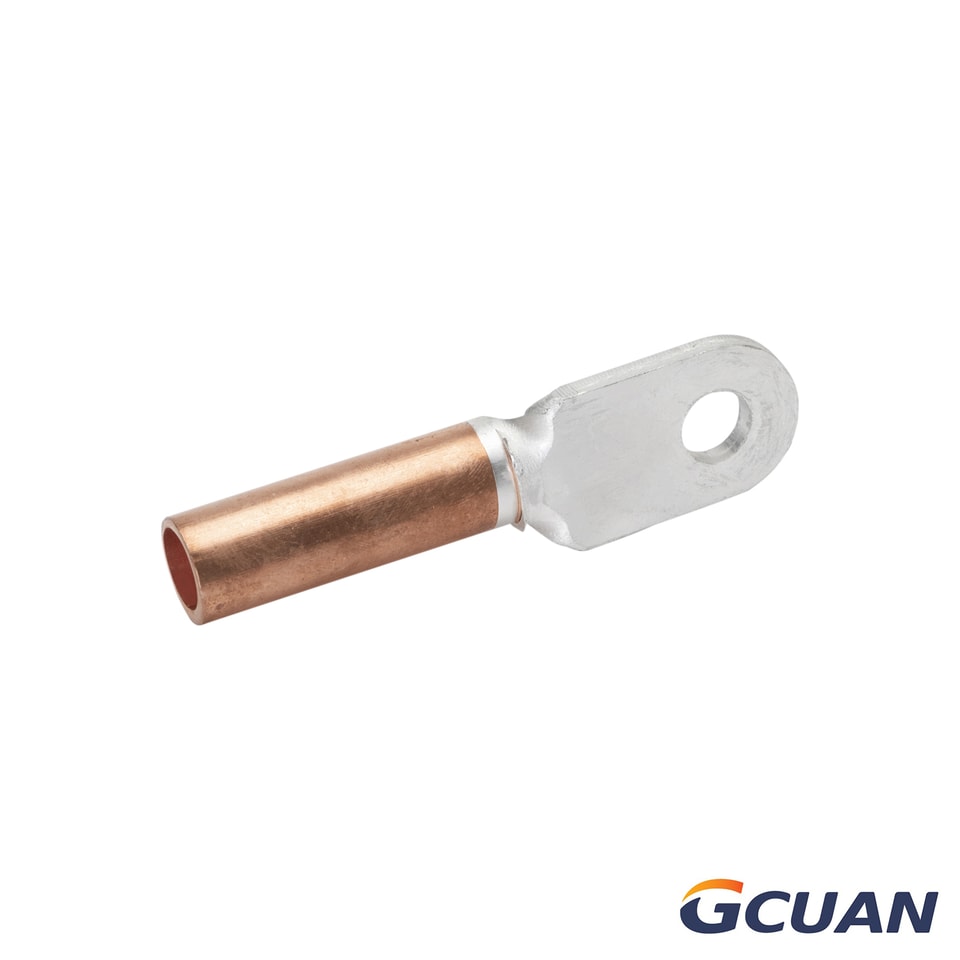

Terminal de cable bimetálico DLT tipo invertido

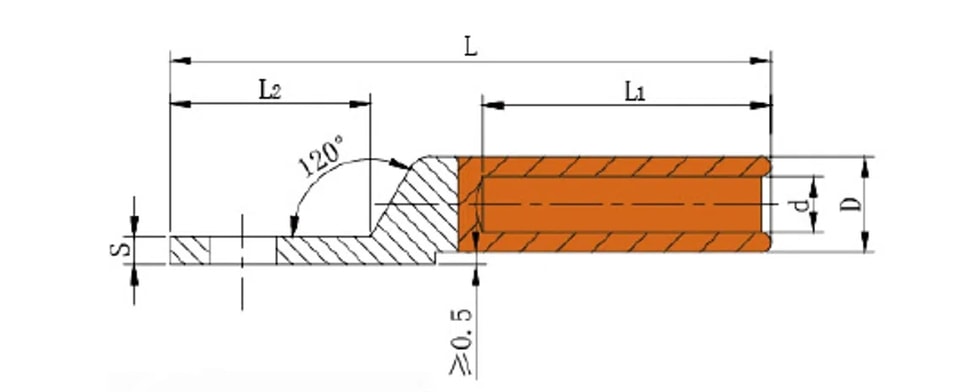

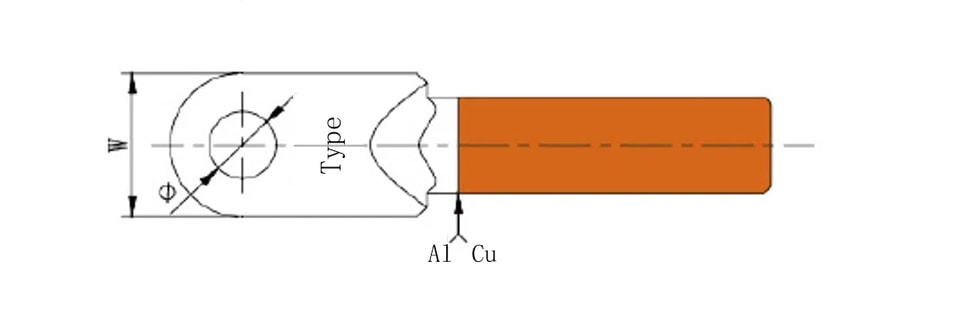

Tipo

Φ

D

d

L1

L2

W

S

L

DLT-16

8.4

10

6.3

31

22.5

16

2.5

66

DLT-25

8.4

11

7.3

34

25

18

2.8

70

DLT-35

10.5

12

8.5

36

29

20

3.0

78

DLT-50

10.5

14

9.5

37

31

23

3.5

85

DLT-70

12.5

16

11.5

43

33.5

26

3.8

95

DLT-95

12.5

18

13.5

46

37

28

4.5

104

DLT-120

14.5

20

15.1

47

41

30

5.0

112

DLT-150

14.5

22

16.5

49

43

34

5.4

117

DLT-185

16.5

25

18.5

52

44

37

5.8

125

DLT-240

16.5

27

20.7

58

50

40

6.5

135

DLT-300

21

30

23.5

63

58

45

8.0

155
