Terminal de cobre SG

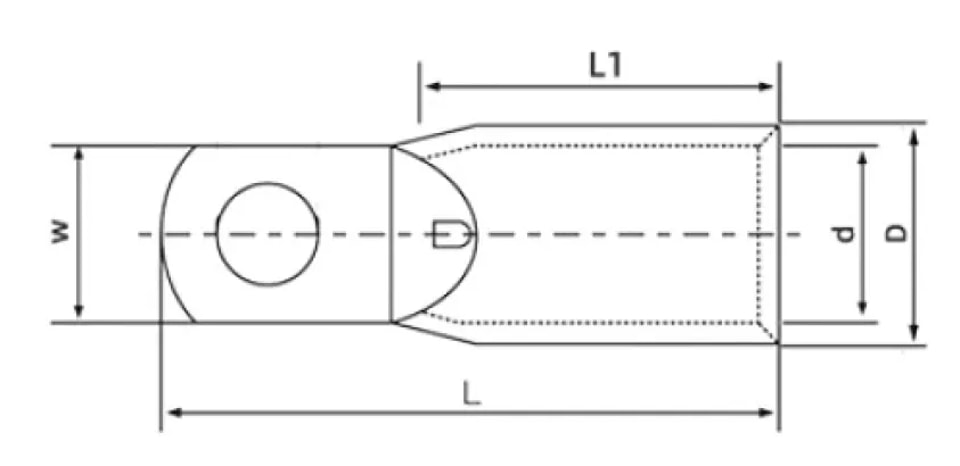

Especificación del tipo

Orificio para tornillo

Ancho de la placa (W)

Longitud total (L)

Longitud del tubo (L1)

Diámetro exterior del tubo (D)

Diámetro interior del tubo (d)

Placa

espesor (T)

SG50-6

6.31

15.5

49.25

23.55

13.68

9.67

4.48

SG50-8

8.39

15.75

49.26

24.27

13.9

9.85

4.41

SG50-10

10.54

15.8

49.99

24

13.97

9.9

4.37

SG70-6

6.29

17.64

54.99

28.98

16.74

11.96

5.67

SG70-8

8.49

18.13

54.85

28.87

16.87

12.02

5.42

SG70-10

10.63

17.93

54.68

29.15

16.76

12.2

5.45

SG70-12

10.26

17.97

54.86

28.91

16.77

11.75

5.49

SG95-6

6.29

18.6

59.01

32.26

17.76

13.83

4.95

SG95-8

8.39

18.64

58.98

31.61

17.91

13.75

4.94

SG95-10

10.49

18.95

59.78

31.59

17.9

13.95

4.78

SG95-12

12.23

18.7

58.27

31.85

17.76

13.8

4.85

SG120-6

6.29

20.6

64.14

35.93

19.44

15.54

4.75

SG120-8

8.5

20.9

64.43

37.11

19.86

15.81

5.04

SG120-10

10.46

20.92

65.17

36.9

19.85

15.83

4.84

SG120-12

12.29

20.84

64.42

36.22

19.54

15.61

4.61
